A MaxSafe product, proudly manufactured in Liverpool, UK, known for its quality and reliability in industrial applications.

Pressure Reducing Valve – 3 Bar

Name: Pressure Reducing Valve - 3 Bar
Brand: MaxSafe Global
SKU: PRV3
Price: 7.91 GBP
Availability: InStock

£7.91

Product Code PRV3 Categories: 2080 Blowgun, Hook Blowgun, Air Blowgun, PRV Tags: MaxSafe, Pressure Reducing Valve

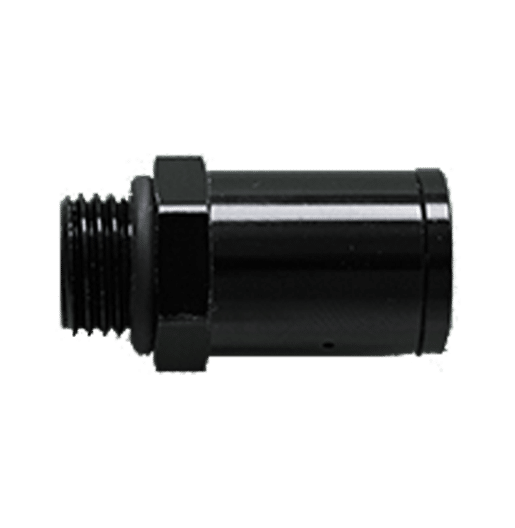

The MaxSafe 3 Bar PRV is a critical safety component in compressed air systems, designed to reduce incoming air pressure to a precise output of 3 bar. It ensures consistent pressure control for sensitive pneumatic tools and equipment, helping to prevent over-pressurisation and system failures.
Engineered with a spring-loaded mechanism and durable construction, this PRV delivers swift and accurate pressure relief. Its compact design, black anodised aluminium body and brass nickel-plated valve make it ideal for demanding industrial environments where low-pressure regulation is essential.

Features

Thread type: 1/4″ female inlet, 1/4″ male outlet
Precise regulation: Reduces incoming pressure to 3 bar for safe downstream use
Emergency relief: Accepts up to 7 bar input and limits output to a stable 3 bar
Spring-loaded mechanism: Delivers fast and reliable pressure response without the complexity of diaphragm systems
Fail-safe design: Simple, robust internal spring ensures long-term reliability and minimal failure points
System protection: Prevents equipment damage caused by excessive air pressure
Quiet operation: Smooth pressure drop with minimal noise
Industry compliance: Manufactured to meet safety and performance standards across multiple sectors

Product Specifications

Pressure range: 3 bar output (preset)
Max input pressure: 7 bar
Inlet thread: 1/4″ BSP female
Outlet thread: 1/4″ BSP male

Materials

Casing: Black anodised aluminium
Valve: Brass nickel plated
Spring: Stainless steel

Applications

Downstream pneumatic tool protection
Automotive workshops
Manufacturing and production lines
Precision assembly environments
Compressed air systems requiring low-pressure control

The MaxSafe 3 Bar PRV provides reliable, maintenance-free safety pressure regulation for compressed air systems where low-pressure output is essential. A compact, compliant and highly effective solution for critical applications.

We always try to ship orders in a timely manner (3-5 working days) however some of our products are produced to order so lead times & delivery times may vary.

Any issues with Shipping/Delivery please email the team [email protected]

Requests by you to return goods to us will be accepted subject to a handling charge if all of the following criteria are met:

The goods are unused and are sourced from the MaxSafe range direct.
The goods are in working order.
The goods were invoiced within 10 days of the date of return.
Carriage is organised by us.
The return includes a completed goods return note with a MaxSafe Returns Number.

Handing charges will be levied as follows:
Goods invoiced within 10 days of the date of return will be subject to a handling charge. All goods must be adequately packed and addressed to:

MAXSAFE GLOBAL LTD, DC RETURNS DEPARTMENT, DEFECTIVE GOODS RETURNS
Unit 3, Barracuda Way, Barracuda Business Park, Burscough, Lancs, L40 7BP

For the avoidance of doubt, returned goods will only be accepted if the above requirements are met. MaxSafe cannot accept responsibility for returns forwarded by customers using their own carriers. MaxSafe is unable to accept any return of goods sourced on a customers behalf which are not listed within the MaxSafe catalogue.
Such orders for non-catalogue goods are non-cancellable and non returnable and as such are accepted entirely at the customers own risk.

At MaxSafe, we are proud to manufacture selected products in the UK.

Products manufactured in the UK are clearly identified by the “MaxSafe Made in UK” image within the product gallery. If this image is not displayed, the product should not be considered UK-manufactured.

Products carrying the MaxSafe UK brand may be manufactured outside the UK, but they are produced to our exact specifications and undergo rigorous quality checks to ensure excellent performance, reliability and durability.

Find the perfect fit!

No interchangeability table available for this product.

Additional information

Weight	15.8 g
Pressure	6 Bar, 5 Bar, 4 Bar, 3 Bar, 2 Bar
Quantity	Single Item (1pc), Box Quantity (4pcs)
