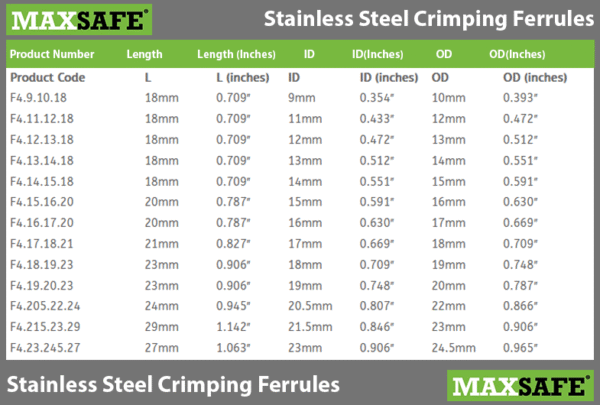

Ferrule Size Chart

Ferrule Chain

£3.00

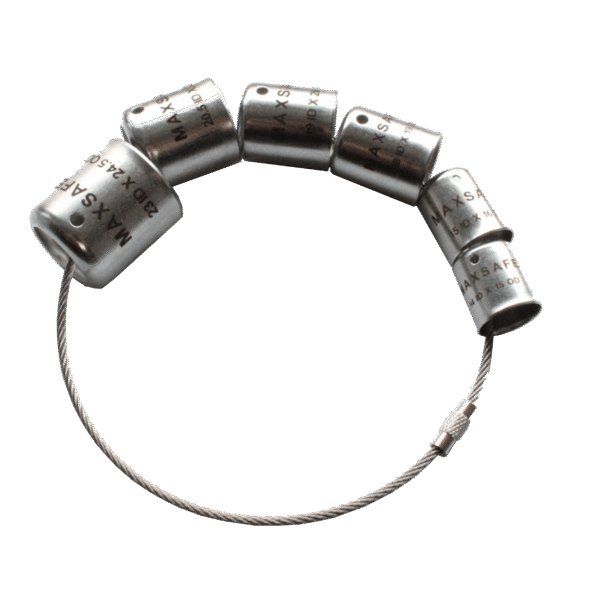

The Ferrule Chain is a practical reference tool for workshops, service vehicles and tool stations. It contains one of each size from our full range of stainless steel ferrules, providing a quick and accurate way to identify the correct size for your hose assemblies. Ideal for anyone working with hydraulic, pneumatic or industrial hoses, the Ferrule Chain ensures that the right ferrule is ordered every time, reducing errors and downtime.

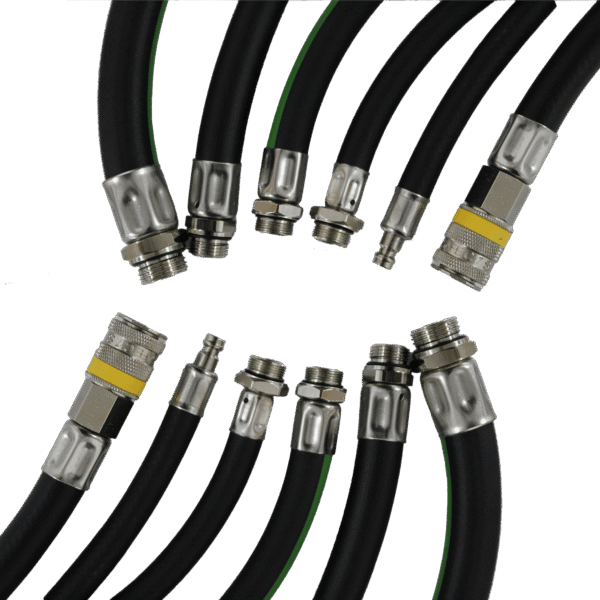

Ferrules are metal sleeves crimped or swaged onto the hose’s end fitting, securing the connection and preventing detachment under pressure. This compression process, performed using a swaging or crimping machine, creates a safe and leak-resistant seal essential in demanding applications.

Features

  • Full size range included – One of each ferrule size from 9mm to 34mm
  • Quick reference tool – Use on-site or at the bench to identify ferrule sizes instantly
  • Reduces errors – Helps ensure correct sizing before ordering
  • Ideal for workshops – Suitable for engineers, technicians and mobile hose fitters

Product Specifications

Each ferrule in the chain is made from stainless steel and labelled with its product code, inner diameter (ID), outer diameter (OD) and length (L). Dimensions are shown in both millimetres and inches.

Metric Sizes Imperial Sizes
Product Code ID (mm) OD (mm) L (mm) Tail Hole (mm) Inspection Hole ID (inches) OD (inches) L (inches) Tail Hole (inch)
F4.9.10.18 9.0 10.0 18.0 6.65 No 0.354 0.394 0.709 0.262
F4.11.12.18 11.0 12.0 18.0 7.75 Yes 0.433 0.472 0.709 0.305
F4.12.13.18 12.0 13.0 18.0 8.00 Yes 0.472 0.512 0.709 0.315
F4.13.14.18 13.0 14.0 18.0 9.50 Yes 0.512 0.551 0.709 0.374
F4.14.15.18 14.0 15.0 18.0 9.50 Yes 0.551 0.591 0.709 0.374
F4.15.16.20 15.0 16.0 20.0 11.50 Yes 0.591 0.630 0.787 0.453
F4.16.17.20 16.0 17.0 20.0 11.70 Yes 0.630 0.669 0.787 0.461
F4.17.18.21 17.0 18.0 21.0 13.00 Yes 0.669 0.709 0.827 0.512
F4.18.19.23 18.0 19.0 23.0 13.50 Yes 0.709 0.748 0.906 0.531
F4.19.20.23 19.0 20.0 23.0 13.80 Yes 0.748 0.787 0.906 0.543
F4.205.22.24 20.5 22.0 24.0 14.60 Yes 0.807 0.866 0.945 0.575
F4.215.23.29 21.5 23.0 29.0 15.00 Yes 0.846 0.906 1.142 0.591
F4.23.245.27 23.0 24.5 27.0 17.00 Yes 0.906 0.965 1.063 0.669
F4.28.30.34 28.0 30.0 34.0 27.50 No 1.102 1.181 1.339 1.083
F4.286.30.28 28.6 30.0 28.0 28.00 No 1.126 1.181 1.102 1.102


The Ferrule Chain is a must-have tool for any workshop dealing with hose assemblies, making part selection faster, easier and more accurate.
