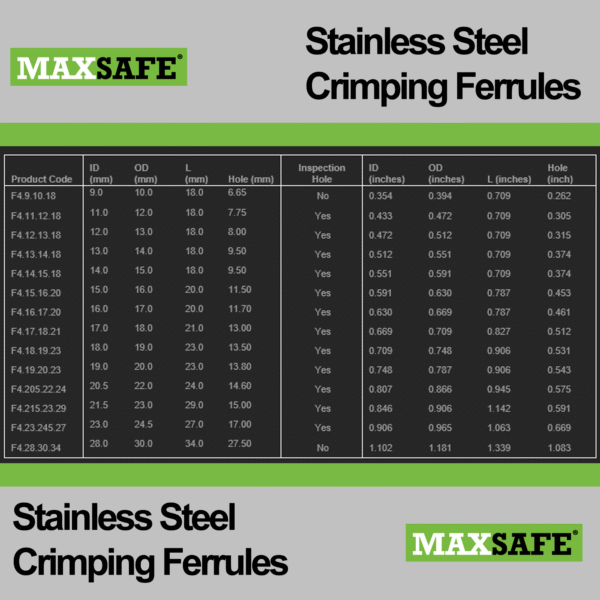

Ferrule Sizing Chart

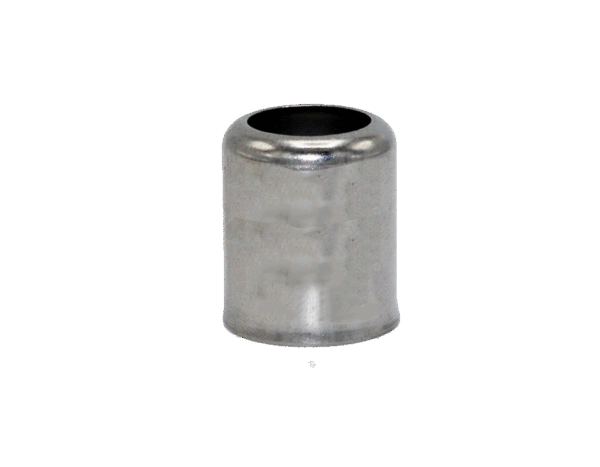

Stainless Steel Hose Ferrules 9x10mm

The 9x10mm stainless steel hose ferrule is designed for industrial hose connections, providing strength and durability in high-pressure applications.

£0.19

The 9x10mm stainless steel hose ferrule is designed for industrial hose connections, providing strength and durability in high-pressure applications. Made from 304 stainless steel, it delivers excellent corrosion resistance, making it suitable for demanding environments such as food, medical, and hydraulic applications.

Key Features:

  • 304 Stainless Steel – Ensures long-lasting corrosion resistance and reliability.
  • Annealed Finish – Prevents cracking or flaking during crimping for a secure connection.
  • Flared Skirt – Makes assembly simpler and more efficient.

This size does not include an inspection hole.

Product Specifications:

  • Product Code: F4.9.10.18
  • Length (L): 18mm
  • Inner Diameter (ID): 9mm
  • Outer Diameter (OD): 10mm

This ferrule ensures a secure and long-lasting hose connection, preventing detachment under pressure.

Other Ferrule Sizes:

Metric Sizes Imperial Sizes
Product Code ID (mm) OD (mm) L (mm) Tail Hole (mm) Inspection Hole ID (inches) OD (inches) L (inches) Tail Hole (inch)
F4.9.10.18 9.0 10.0 18.0 6.65 No 0.354 0.394 0.709 0.262
F4.11.12.18 11.0 12.0 18.0 7.75 Yes 0.433 0.472 0.709 0.305
F4.12.13.18 12.0 13.0 18.0 8.00 Yes 0.472 0.512 0.709 0.315
F4.13.14.18 13.0 14.0 18.0 9.50 Yes 0.512 0.551 0.709 0.374
F4.14.15.18 14.0 15.0 18.0 9.50 Yes 0.551 0.591 0.709 0.374
F4.15.16.20 15.0 16.0 20.0 11.50 Yes 0.591 0.630 0.787 0.453
F4.16.17.20 16.0 17.0 20.0 11.70 Yes 0.630 0.669 0.787 0.461
F4.17.18.21 17.0 18.0 21.0 13.00 Yes 0.669 0.709 0.827 0.512
F4.18.19.23 18.0 19.0 23.0 13.50 Yes 0.709 0.748 0.906 0.531
F4.19.20.23 19.0 20.0 23.0 13.80 Yes 0.748 0.787 0.906 0.543
F4.205.22.24 20.5 22.0 24.0 14.60 Yes 0.807 0.866 0.945 0.575
F4.215.23.29 21.5 23.0 29.0 15.00 Yes 0.846 0.906 1.142 0.591
F4.23.245.27 23.0 24.5 27.0 17.00 Yes 0.906 0.965 1.063 0.669
F4.28.30.34 28.0 30.0 34.0 27.50 No 1.102 1.181 1.339 1.083
F4.286.30.28 28.6 30.0 28.0 28.00 No 1.126 1.181 1.102 1.102

Need a custom size? We can manufacture ferrules to your exact requirements. Enquire today!





We always try to ship orders in a timely manner (3-5 working days) however some of our products are produced to order so lead times & delivery times may vary.

Any issues with Shipping/Delivery please email the team [email protected]

Requests by you to return goods to us will be accepted subject to a handling charge if all of the following criteria are met:

  • The goods are unused and are sourced from the MaxSafe range direct.
  • The goods are in working order.
  • The goods were invoiced within 10 days of the date of return.
  • Carriage is organised by us.
  • The return includes a completed goods return note with a MaxSafe Returns Number.

Handing charges will be levied as follows:
Goods invoiced within 10 days of the date of return will be subject to a handling charge. All goods must be adequately packed and addressed to:

MAXSAFE GLOBAL LTD, DC RETURNS DEPARTMENT, DEFECTIVE GOODS RETURNS
Unit 3, Barracuda Way, Barracuda Business Park, Burscough, Lancs, L40 7BP

For the avoidance of doubt, returned goods will only be accepted if the above requirements are met. MaxSafe cannot accept responsibility for returns forwarded by customers using their own carriers. MaxSafe is unable to accept any return of goods sourced on a customers behalf which are not listed within the MaxSafe catalogue.
Such orders for non-catalogue goods are non-cancellable and non returnable and as such are accepted entirely at the customers own risk.

At MaxSafe, we are proud to manufacture selected products in the UK.

Products manufactured in the UK are clearly identified by the “MaxSafe Made in UK” image within the product gallery. If this image is not displayed, the product should not be considered UK-manufactured.

Products carrying the MaxSafe UK brand may be manufactured outside the UK, but they are produced to our exact specifications and undergo rigorous quality checks to ensure excellent performance, reliability and durability.

Read More

Find the perfect fit!

No interchangeability table available for this product.

Additional information

Weight 1.6 g
